110v Direct Injection Unit

£1,750.00 + Vat

Direct Injection chemical dosing unit

Can chlorinate 1,200 litres per minute at 20 ppm

10 litre per hour dosing in up to 10 bar pressure


SKU: CHU004 Categories: ,


Chlorination Dechlorination Portable Chemical dosing Unit

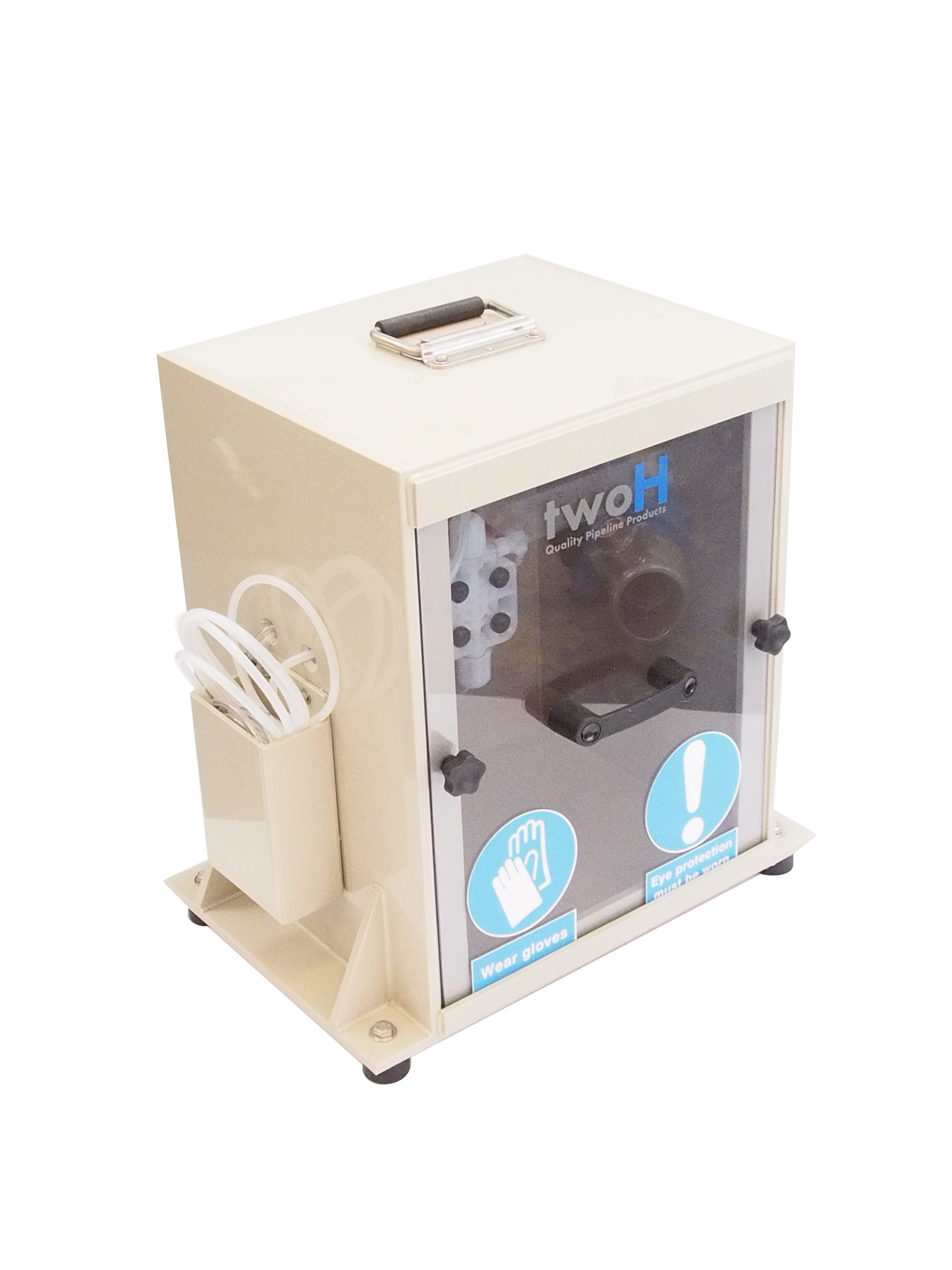

The Direct Injection Chemical dosing unit is a very versatile piece of equipment. It can be used to chlorinate pipelines – it will dose at 20 ppm at 1,200 litres per minute; it can also be used to increase residual chlorine levels on distribution networks and at treatment works. Similarly, it can be used to dechlorinate pipelines following chlorination; or remove residual chlorine when flushing mains.

The cabinet can be supplied with a lockable front to prevent unauthorised access and it can be fixed in place as a permanent / semi permanent installation if required (cabinet dimensions – 410mm high x 300mm wide x 200mm deep).

These units have been extensively tested by Excel Pipelines; and they have proved to be tremendously reliable.

When used with an optional 110v battery pack, it forms a very light weight easily portable chemical dosing kit.

As with all of our chemical dosing units, it can be used with a multitude of chemicals.
